made in china valve from China manufacturer - NINGBO SUPERMECH PNEUMATIC HYDRAULIC CO., LTD.

Price:	3.5 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


Add to Basket	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Air

Packing: Cartons/Pallets

Power: Solenoid

Pressure: Medium Pressure

Material: Alloy

Media: Gas

Body material: aluminum alloy

Working pressure: 0.15-0.8Mpa

Production Capacity: 10000Sets/month

Delivery Date: 15-30Days

Standard or Nonstandard: Standard

Structure: Safety

Temperature of Media: Normal Temperature

Brand Name: SUPERMECH

Position And Way: Two-position five-way

Operating Temperature: 5-50`C

Solenoid valve piping should be thoroughly cleaned before installation. Pass into the media should be free of impurities. Valve pre-installed filter

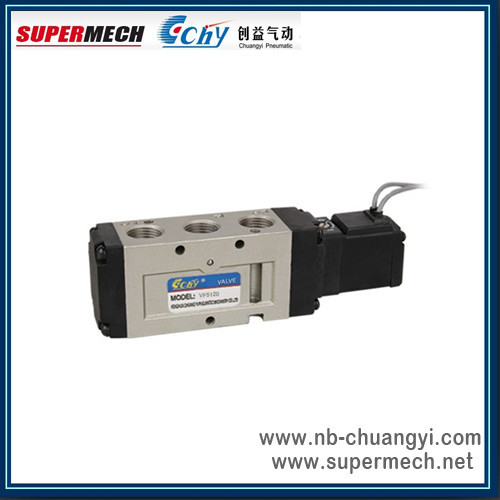

Product name: VZ 5120 VZ5220 penuamtic air solenoid valve

Model	VZ5120 VZ5220
Position And Way	Two-position five-way
Effective sectional Area	12mm²(CV=0.67)
Working Medium	40 Micron Filtered Air
Montion Patten	Inner Guide Type
Working pressure	0.15-0.8Mpa
Max.Pressure Resistance	1.2Mpa
Operating Temperature	5-50^.C
Voltage Range	plus-minus 10%
Power Consumption	AC:4.5VA DC:3W
Insulation &Protection Class	F class.IP65
Wiring Form	Lead Wire or Connector type
Highest Action Frequency	5 Cylcle /Sec
Shortest Excitation Time	0.05 Second
