Price:	10.0 USD
Payment Terms:	T/T,D/P
Place of Origin:	Zhejiang, China (Mainland)


Add to Basket	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Air

Packing: carton/pallet

Brand Name: SUPERMECH

Piston speed: 25-500MM/S

Port: Ningbo or Shanghai

Production Capacity: 1000/week

Delivery Date: 15- 25 days

Material: Aluminum

Power: Pneumatic

Festo double shifts pneumatic cylinder
1.Double rods
2.Festo DNC-S2 type
3.Through male piston rod
4.Long life

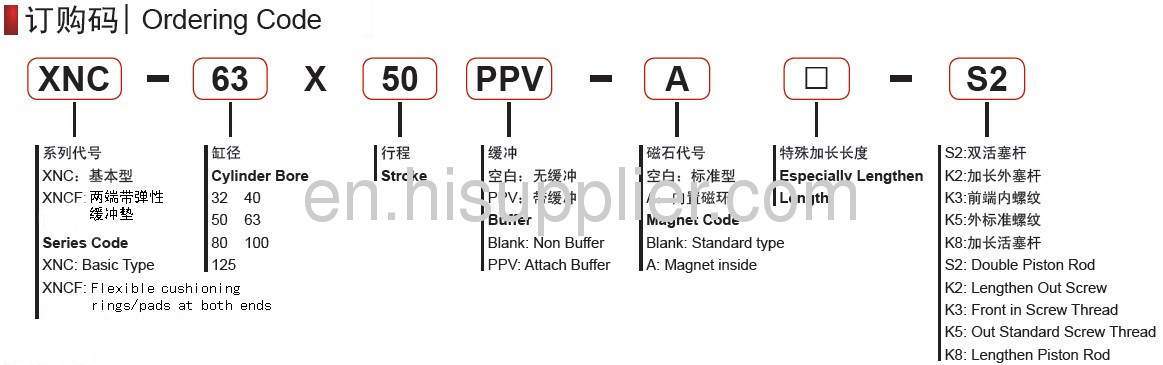

Product name:ISO 15552 double rods standard cylinder
Model:XNC-S2

Characteristics
1.Using TEFLON material bushing,lubrication is not required.
2.Adjustable cushion is in front and end cover for shock resistance.
3.High temperature type cylinder is optional.
4.All kinds of accessories according to ISO15552 .
5.Sensor could be used for position the magnetic type cylinder.

Specification

Bore (mm)	32	40	50	63	80	100	125
Motion Pattern	Fitered Air
Working Medium	Double Action
Compression Pressure	1.5MPa
Max.Operating Pressure	1.0MPa
Min.Operating Pressure	0.1MPa
Buffer	Air Buffer(Standard)
Condition Temperature	5~60°C
Operating Speed	50~500mm/s
Margin of Stroke Error (mm)	0~250+1.0/-0 251~1000+1.5/-0 1001~1500+2.0/-0
Operating Life	Not less than 4000m
Lubricate	Not Necessary
Joint Pipe Bore	G1/8"	G1/4"		G3/8"		G1/2"

Shipment

1: Usually we ship your order by sea or by air...

2: We do our best to ship your order in 2 week after receive your payment

3: We'll tell you the tracking number once your order has been sent.

4.100% one by one tested.

5. MOQ: 5 pcs, small order is available in the first business

6. Payment: T/T, WEST UNION,

7. Welcome OEM designs and manufacture

8. Delivery: By air, by sea, by express such as DHL, TNT or EMS etc, deliver time 5-15 days.

Why choose us

1: Various style for completely series pneumatic products for you to choose

2: High quality with competitive price

3: Sample order & small quantity order is ok

4: Provide free products information.

5. Reliable quality assured and active after-sell service

brand packages:

1.with our brand SUPERMECH in products and boxes

2. with blank brand no logo

3. with client logo

Dear Mr/Ms,

Come to China, Come to SUPERMECH.

We are factory of Pneumatic Cylinder and Pneumatic Fittings, air source treatment(FRL Combination), Solenoid Valve, if you are interested in our company, please contact us freely, We promise to reply email to you in 24 hours.
