M5 thread air handling unit pricesair filter regulator Custom-made AC1010-M5 manufacturer from China NINGBO SUPERMECH PNEUMATIC HYDRAULIC CO., LTD.

M5 thread air handling unit pricesair filter regulator Custom-made

Price:	13.8 USD
Payment Terms:	T/T,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: AC1010-M5

Production Capacity: 10000Sets/month

Delivery Date: 15-30Days

Material: aluminum alloy

Testing: 100% testing

Means of Transport: Ocean,Air

Packing: Cartons/Pallets

Brand Name: SUPERMECH

Type: custom-made

100% testing

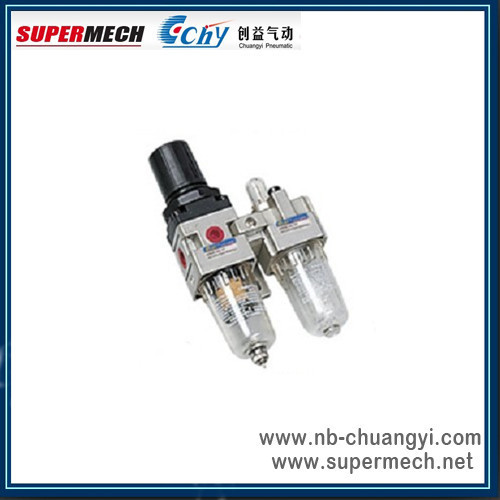

Product: air filter regulator

Model:AC1010-M5

AC1010-M5 air prepare unit filter element china Custom-made

Model		CAC 1010-M5
Rated Flow		90
Joint Pipe Bore		M5
Filter Precision		25μm
HighestWorking		1.0MPa
Pressure
Ensured Pressure		1.5MPa
Resistance
Operating Temperature Range		5~60'C
Range of Adjustment Pressure		0.05~0.7MPa
Recommended oil Use		ISO VG 32
Container Material		Polycarbonate
Protective Cover		Not Available
Drain Function		Differential Drain
Vakve Type		With Overfkiw

AC1010-M5 air prepare unit filter element china Custom-made

FRL use and maintenance

a. working medium to the use of clean and dry compressed air, and the air inside the pipe to prevent impurities into fully purge the system caused by the cylinder, valve malfunction, requiring lubrication piping systems in add lubricator is recommended to use lubrication oil is a transparent oil No. 1 (ISOVG32).

b. Normal system operation, to regularly check the air filter, lubricator work, and timely drainage (except automatic drain), refueling

c. Cylinder and valve when for long time not to use, pay attention to the minimum operating frequency of 1/30 days

d. Always check the operation of various pneumatic components, check the connection screws loose? Components for damage seal leakage phenomenon? Identify problems and timely treatment

e. Maintenance, be sure to turn off gas supply in advance, and the compressed air piping system maintenance operations can be carried out after emptying to prevent accidents

f. Component overhaul complete reassembly parts must be cleaned, and other impurities can not be brought within the system
